POE Powered 3 Port Switch & Network Cat5 Cat6 Midspan Cable Range Extender Pass Through Repeater for IP Cameras - Gigabit 10/100/1000
Product details
| Management number | 209104610 | Release Date | 2026/03/29 | List Price | $16.00 | Model Number | 209104610 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

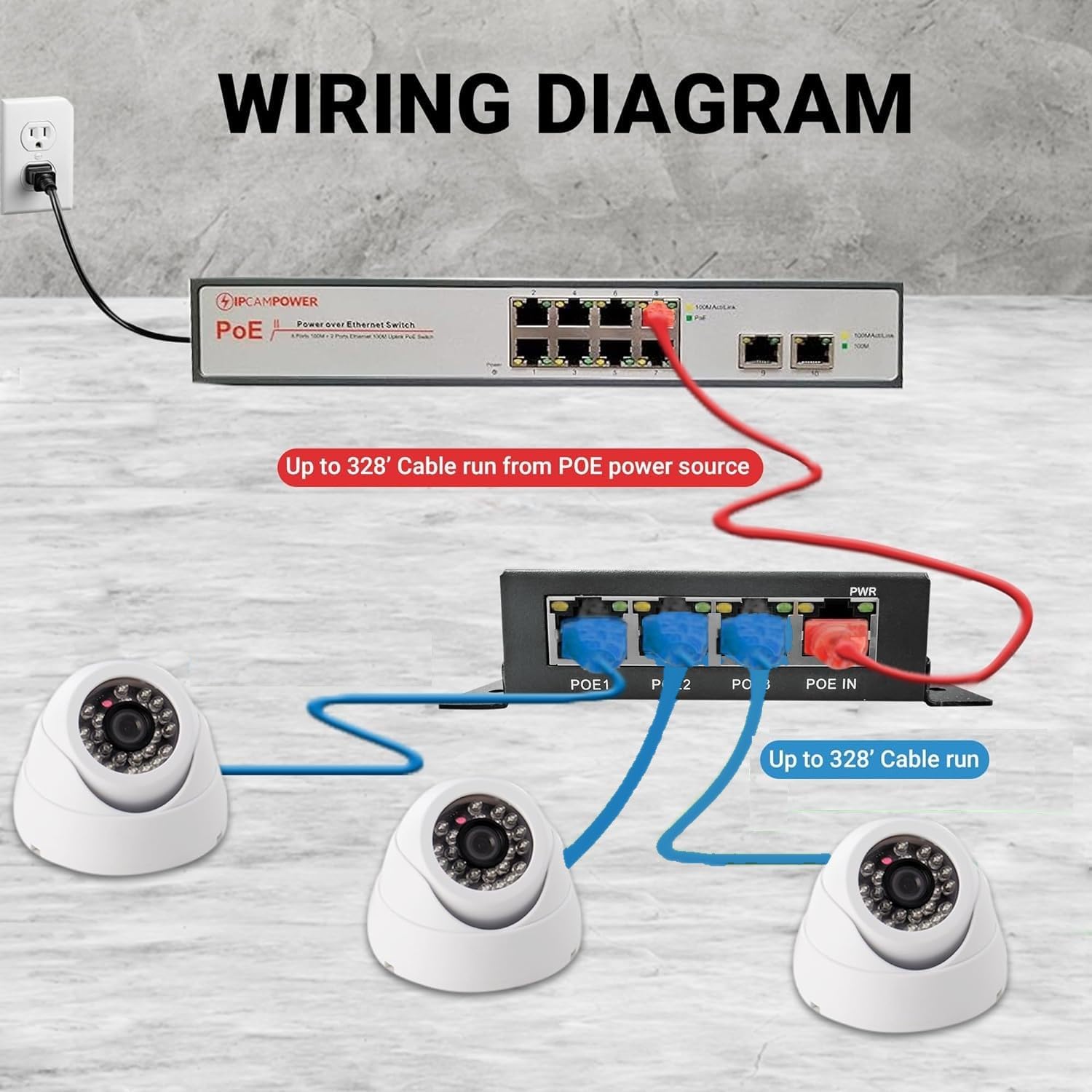

Why hasnt anyone thought of this before. Anyone that has installed POE powered IP phones or IP cameras has probably had a need for something like this. POE Powered 3 Port Unmanaged Switch: This device will take an incoming POE power source to be powered and act as a standard 3 Port POE switch. Has 1 port in and 3 Ports out. Useful if you want to take an incoming POE signal sent through one cable and be split out to power 2 cameras at once. Can also be used as a switch for non-POE devices as well. This device requires no local power and does not need a receptable nearby. The only way it is powered is by the incoming POE power from your POE switch or injector. It is also gigabit rated for fast data transfer speeds.
- POE POWERED 3 PORT 10/100 UNMANAGED POE SWITCH - This unique switch is powered by incoming POE power from your POE switch or POE injector. It has 1 POE input that passes POE and Data through to the 3 POE Outputs. Since it does not require traditional AC power, this gives the user the ability to install this POE switch anywhere without the need for a nearby power receptacle.
- POE AND DATA CABLE RUN EXTENDER - Not only does this act as a standard POE switch, it also gives you the ability to surpass the limitations of a standard 100 meter cable run. This unit can extend your incoming Data and POE transmission up to an additional 100 meters on all 3 output ports.
- GIGABIT SPEEDS ON ALL PORTS - All 4 Ports utilize 10/100/1000 gigabit speeds for fast and efficient transfer speeds. Whether you are using this for low bandwidth IP Cameras or High bandwidth applications such as PCs, this POE Powered switch gets the job done.
- POWERED BY INCOMING POE - This switch operates best with 30 watts of incoming POE, but can function at reduced capacity with lower wattage. It uses 5W for itself and channels remaining power to the 3 outputs. Compatible with standard POE types (802.3af/at/bt), utilizing max 30W. Output wattage budget is 25W total, shared across 3 ports (up to 25W per port).
- LOW PROFILE AND WALL MOUNTABLE - The unit is small and unassuming and can be conveniently installed on a flat surface or be wall mounted using the included wall mount ears. Size is only 8.25cm Wide (11.35cm Wide with mounts installed) x 5.5cm High x 2.4cm Deep
| UPC | 785034282287 |
|---|---|
| Color | Black |
| Model | 10/100/1000 |
| Wattage | 30 watts |
| Terminal | Rj45 |
| Brand Name | IPCamPower |
| Unit Count | 1.0 Count |
| Switch Type | IGBT |
| Circuit Type | 3-way |
| Contact Type | Normally Open |
| Manufacturer | IPCamPower |
| Material Type | Copper |
| Mounting Type | Wall Mount, Tabletop |
| Connector Type | Poe+ |
| Control Method | Touch |
| Operation Mode | automatic |
| Item Dimensions | 0.94 x 4.47 x 2.17 inches |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Operating Voltage | 48 Volts (DC) |
| Specification Met | Ip54 |
| Included Components | POE |
| Number of Positions | 3 |
| Warranty Description | 1 Year Warranty |
| Connectivity Protocol | Ethernet |
| International Protection Rating | IP54 |
